Building a Comfortable Environment for Innovation and Learning on AWS
Workshop Overview
Innovation Sandbox on AWS Workshop is a guide to help learning groups or companies have a place to experiment and try things out without worrying about security or costs.
Main Objectives
- Manage separate AWS accounts for experimentation
- Convenient cost management through web interface.
Knowledge Requirements (Should know beforehand)
- Knowledge of AWS Organizations and AWS IAM Identity Center
- Basic understanding of AWS CloudFormation (just need to understand the concept since template files are already provided)
Implementation Time
- Total implementation time: About 2 hours (may take longer if you want to dive deep)

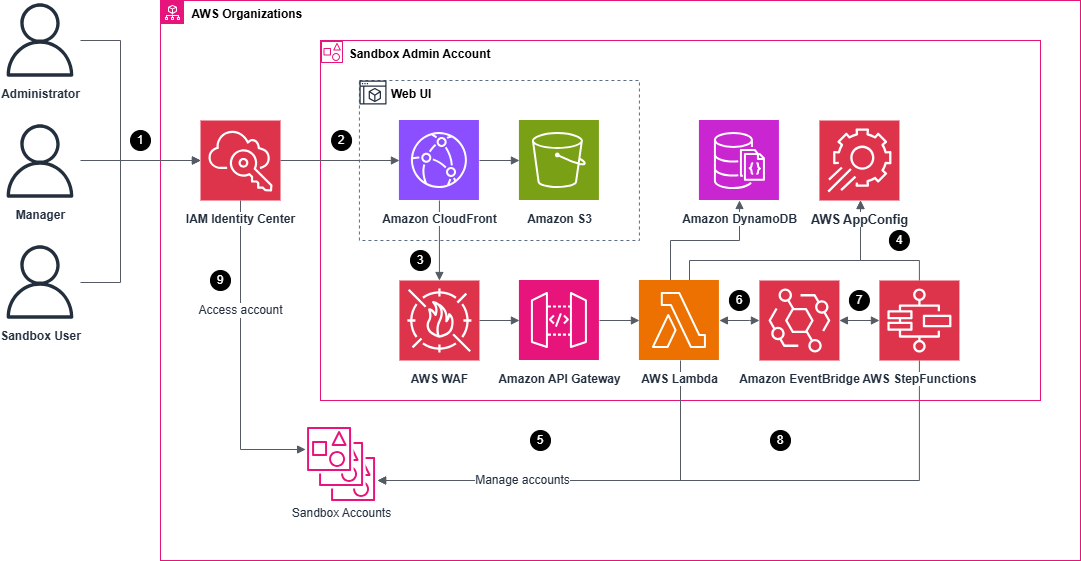

Main Solution Components
| Component | Primary Role |
|---|---|
| AWS IAM Identity Center | User authentication, access management |
| Amazon CloudFront | Distribute user interface, serve web from S3, forward API to Lambda |
| AWS WAF | Security filtering for dynamic routes |
| AWS AppConfig | Store solution configuration |
| AWS Organizations | Manage multiple AWS accounts under one organization, group by OU, manage entire environment |
| AWS Lambda | Execute provisioning logic, cleanup, sandbox account management, dynamic interfaces |
| Amazon EventBridge | Trigger tasks based on time or events |
| AWS Step Functions | Manage sandbox account state according to logical processes |
| AWS accounts | Sandbox accounts prepared and distributed to end users |
Account Lifecycle
- Account onboarding: Accounts are brought into the system and cleaned up before use.
- Available: Accounts ready to be provisioned to users.
- Active: Accounts in use, system monitors cost and usage time.
- Frozen: Accounts frozen when exceeding budget or time, or by administrator.
- Cleanup: When accounts expire, system automatically cleans up resources.
- Quarantine: If cleanup process fails, accounts are quarantined for reprocessing.
- Exit: Accounts can be removed from system when necessary.

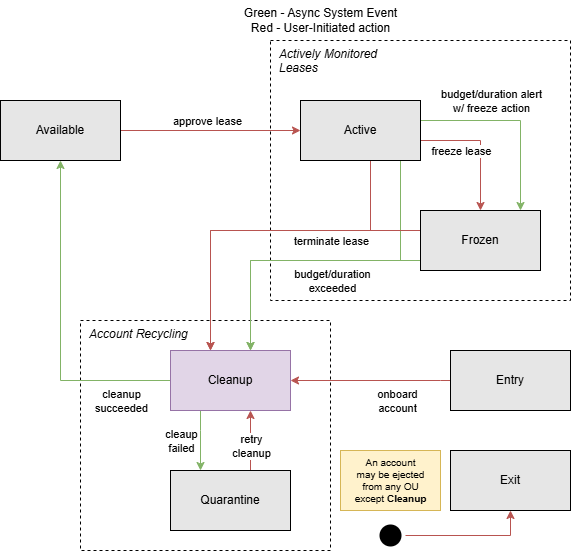

Detailed Explanation of Account Lifecycle Diagram
The account lifecycle diagram describes the main states of a sandbox account in the system:
- Available: Account ready for provisioning.
- Active: Currently in use, monitoring cost and time.
- Frozen: Frozen when exceeding spending/time limits or by administrator request.
- Cleanup: Clean up account when usage expires.
- Quarantine: Quarantine if cleanup fails, can retry.
- Entry/Exit: Onboard or remove account from system.
Workshop Deployment Process
1. Prerequisites (Preparation)
- Prepare AWS environment, create accounts.
- Time: 15-20 minutes (may take longer if creating new accounts).
2. Deployment
- Deploy CloudFormation stacks, configure infrastructure, set up management.
- Time: ~45 minutes.
3. Configuration
- Configure SAML integration for authentication, set up user access, onboard sandbox accounts.
- Time: ~15 minutes.
4. Using the sandbox
- Learn how to use the solution through three different roles.
- Time: ~30 minutes.
References Links:
https://catalog.us-east-1.prod.workshops.aws/workshops/23f635fc-dc98-4f75-8b91-6f334d0e22c3
https://docs.aws.amazon.com/solutions/latest/innovation-sandbox-on-aws/solution-overview.html
https://aws.amazon.com/solutions/implementations/innovation-sandbox-on-aws/
